Name: KL11 Single Acting Rod Seals Hydraulic Cylinder Rod Seals Untuk Mesin Mobile
Brand: Kelong
SKU: KL11
Rating: 4.9 (120 reviews)

Home > Produk > Segel Batang Hidraulik >

KL11 Single Acting Rod Seals Hydraulic Cylinder Rod Seals Untuk Mesin Mobile

KL11 Segel batang berfungsi tunggal

Penutup Rod Single Acting Hydraulic

Segel batang silinder hidrolik

Tempat asal:

Cina

Nama merek:

Kelong

Sertifikasi:

ISO9001 / IRIS

Nomor model:

KL11

Request A Quote

Product Details

Gaya:

Segel batang silinder hidrolik

Suhu (max) °C:

-30/+100

Tekanan (max) bar:

400

Bahan:

NBR / FABRIC NBR / POM

Kecepatan geser (max) - m/s:

0,5

Aplikasi:

Silinder industri / Mesin mobile / Silinder hidrolik standar

Payment & Shipping Terms

Kemasan rincian:

Tas Opp

Waktu pengiriman:

7-15 hari kerja

Syarat-syarat pembayaran:

L/C, T/T, PayPal

Menyediakan kemampuan:

100.000 buah/bulan

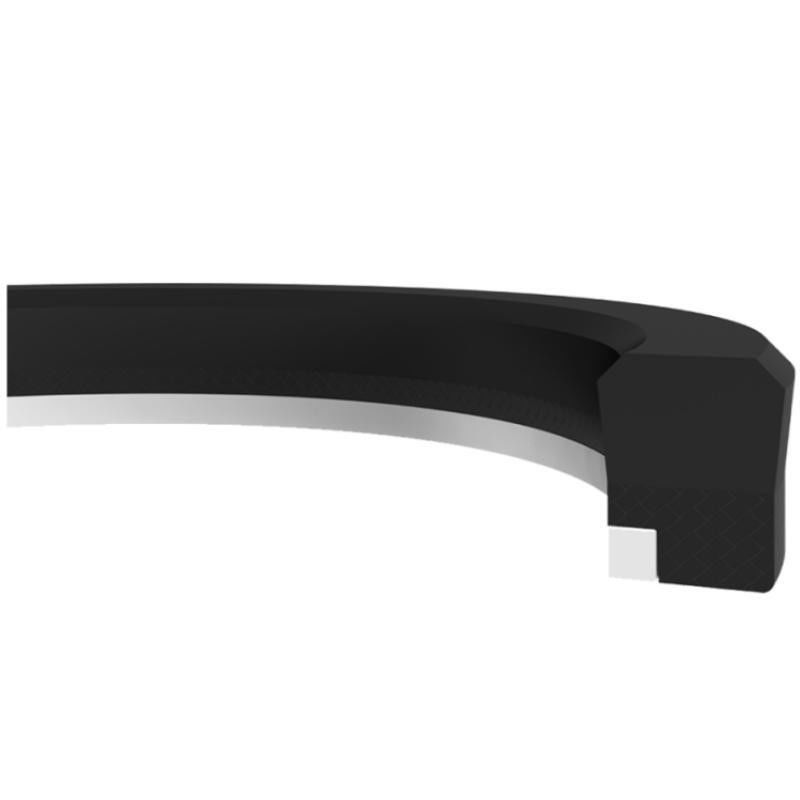

KL11 single acting hydraulic rod seal terdiri dari elastomer ring kain dan thermoplastic extrusion ring.

Keuntungan

• Penutup yang sangat baik pada tekanan rendah dengan bahan preload dan elastomer yang tinggi

• Resistensi ekstrusi yang tinggi karena cincin cadangan

• Ketahanan terhadap keausan yang tinggi

• Desain alur yang sederhana

Bidang Aplikasi

• Silinder hidrolik standar

• Mesin pencetak

• Mesin bergerak

• Silinder industri

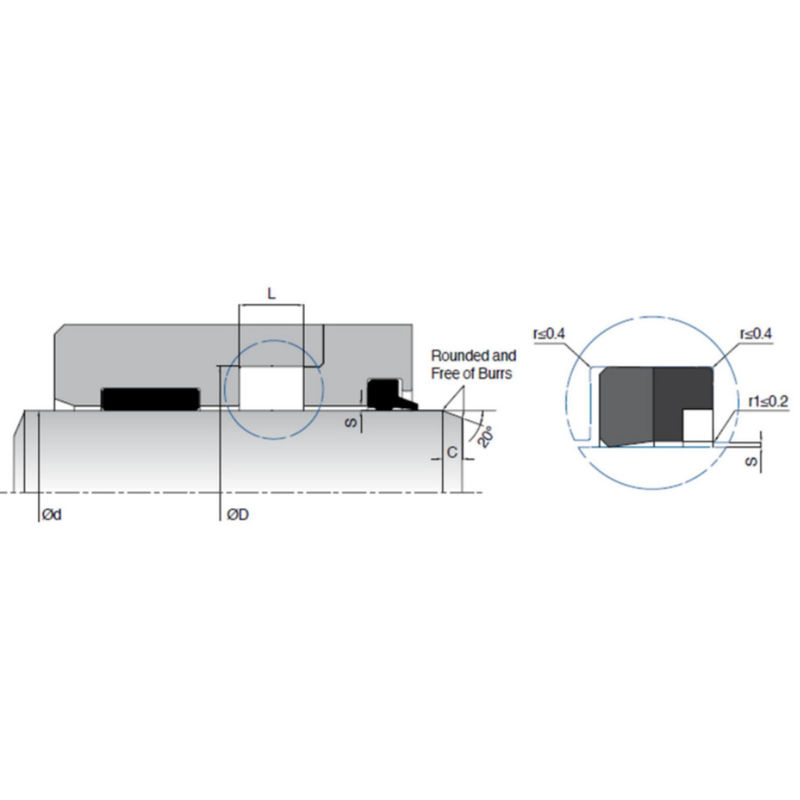

	d (f8)	D (H9)	L (+0,2/-0)	C	Bahan
KL11-006	6	14	6.5	5	NBR
KL11-012	12	23	7.5	5	NBR
KL11-015	15	27	7	5	NBR
KL11-016	16	28	7.5	5	NBR
KL11-016/1	16	24	7	5	NBR
KL11-018	18	26	6.4	5	NBR
KL11-018/1	18	28	6.3	5	NBR
KL11-018/2	18	30	7.5	5	NBR
KL11-020	20	30	8	5	NBR
KL11-020/1	20	27	6	5	NBR
KL11-020/2	20	28	6.3	5	NBR
KL11-020/3	20	28	7	5	NBR
KL11-020/4	20	30	8.5	5	NBR
KL11-020/5	20	28	5.6	5	NBR
KL11-022	22	32	7.5	5	NBR
KL11-022/1	22	29	5	5	NBR
KL11-022/2	22	30	7	5	NBR
KL11-022/3	22	32	10	5	NBR
KL11-022/4	22	34	9.5	5	NBR
KL11-022/5	22	35	10	5	NBR
KL11-025	25	38	9.5	5	NBR
KL11-025/1	25	33	6	5	NBR
KL11-025/2	25	35	8	5	NBR
KL11-025/3	25	33	6.4	5	NBR
KL11-025/4	25	35	9	5	NBR
KL11-025/5	25	38	10	5	NBR
KL11-025/6	25.4	38.1	10	5	NBR
KL11-025/7	25	33	7	5	NBR
KL11-028	28	38	8	5	NBR
KL11-028/1	28	41	9.5	5	NBR
KL11-028/2	28	36	6.4	5	NBR
KL11-028/3	28	40	9.5	5	NBR
KL11-028/4	28	41	10	5	NBR
KL11-028/5	28.57	39.68	9.5	5	NBR
KL11-030	30	40	10.5	5	NBR
KL11-030/1	30	38	6.5	5	NBR
KL11-030/2	30	40	7	5	NBR
KL11-030/3	30	40	7.5	5	NBR
KL11-030/4	30	45	9	5	NBR
KL11-030/5	30	50	14.5	5	NBR
KL11-031	31.75	47.62	11.7	5	NBR
KL11-032	32	40	9	5	NBR
KL11-032/1	32	42	11	5	NBR
KL11-032/2	32	45	10	5	NBR
KL11-032/3	32	40	5	5	NBR
KL11-032/4	32	40	8.5	5	NBR
KL11-034	34.92	50.8	8.6	5	NBR
KL11-035	35	45	10.5	5	NBR
KL11-035/1	35	50	10.5	5	NBR
KL11-035/2	35	45	10	5	NBR
KL11-035/3	35	50	11.5	5	NBR
KL11-035/4	35	43	6	5	NBR
KL11-036	36	43	6.5	5	NBR
KL11-036/1	36	44	6.4	5	NBR
KL11-036/2	36	46	8.5	5	NBR
KL11-036/3	36	48	12	5	NBR
KL11-036/4	36	48	9.5	5	NBR
KL11-038	38	55	10.5	5	NBR
KL11-038/1	38.1	50.8	10	5	NBR
KL11-038/2	38.1	53.97	10.5	5	NBR
KL11-040	40	50	10.5	5	NBR
KL11-040/1	40	55	10.5	5	NBR
KL11-040/2	40	50	11	5	NBR
KL11-040/3	40	48	6.5	5	NBR
KL11-040/4	40	55	11	5	NBR
KL11-040/5	40	50	10	5	NBR
KL11-040/6	40	50	8	5	NBR
KL11-040/7	40	55	8	5	NBR
KL11-040/8	40	60	14.5	5	NBR
KL11-040/9	40	52	12	5	NBR
KL11-042	42	52	9	5	NBR
KL11-044	44.5	53.97	7	5	NBR
KL11-044/1	44.5	53.97	7.5	5	NBR
KL11-044/2	44.5	60.32	11.7	5	NBR
KL11-045	45	55	10.5	5	NBR
KL11-045/1	45	60	10.5	5	NBR
KL11-045/2	45	55	11	5	NBR
KL11-045/3	45	55	8	5	NBR
KL11-045/4	45	55	7.5	5	NBR
KL11-045/5	45	57	10	5	NBR
KL11-045/6	45	65	14.5	5	NBR
KL11-045/7	45	53	8.5	5	NBR
KL11-045/8	45	60	10	5	NBR
KL11-050	50	65	10.5	5	NBR
KL11-050/1	50	62	10	5	NBR
KL11-050/2	50	60	10.5	5	NBR
KL11-050/3	50	60	10	5	NBR
KL11-050/4	50	65	11	5	NBR
KL11-050/5	50	62	8	5	NBR
KL11-050/6	50	70	14	5	NBR
KL11-050/7	50	60	7.5	5	NBR
KL11-050/8	50	60	8	5	NBR
KL11-050/9	50	70	14.5	5	NBR
KL11-050/10	50	63	12	5	NBR
KL11-054	54	66	9.5	5	NBR
KL11-055	55	65	10.5	5	NBR
KL11-055/1	55	65	12	5	NBR
KL11-055/2	55	65	11	5	NBR
KL11-055/3	55	75	14	5	NBR
KL11-055/4	55	65	8	5	NBR
KL11-055/5	55	70	10.5	5	NBR
KL11-055/6	55	75	14.5	5	NBR
KL11-056	56	66	10.5	5	NBR
KL11-056/1	56	71	10.5	5	NBR
KL11-056/2	56	76	14.5	5	NBR
KL11-057	57.15	69.85	10	5	NBR
KL11-060	60	70	10.5	5	NBR
KL11-060/1	60	70	12.5	5	NBR
KL11-060/2	60	80	14	5	NBR
KL11-060/3	60	75	13	5	NBR
KL11-060/4	60	75	12.5	5	NBR
KL11-060/5	60	69	7	5	NBR
KL11-060/6	60	70	11	5	NBR
KL11-060/7	60	70	8	5	NBR
KL11-060/8	60	70	13	5	NBR
KL11-060/9	60	72	10	5	NBR
KL11-060/11	60	80	14.5	5	NBR
KL11-060/12	60	75	8	5	NBR
KL11-063	63	71	9	5	NBR
KL11-063/1	63	75	11	5	NBR
KL11-063/2	63	78	12.5	5	NBR
KL11-063/3	63	83	14.5	5	NBR
KL11-063/4	63.5	82.55	14.5	5	NBR
KL11-063/5	63.5	76.2	8.5	5	NBR
KL11-063/6	63.5	77.78	11.6	5	NBR
KL11-065	65	80	12.5	5	NBR
KL11-065/1	65	75	12.5	5	NBR
KL11-065/2	65	75	13.5	5	NBR
KL11-065/3	65	77	9.6	5	NBR
KL11-065/4	65	80	11.5	5	NBR
KL11-070	70	80	12.5	5	NBR
KL11-070/1	70	85	12	5	NBR
KL11-070/2	70	85	12.5	5	NBR
KL11-070/3	70	90	14	5	NBR
KL11-070/4	70	80	8	5	NBR
KL11-070/5	70	80	13	5	NBR
KL11-070/6	70	82	10.5	5	NBR
KL11-070/7	70	84	12.5	5	NBR
KL11-070/8	70	90	12	5	NBR
KL11-075	75	85	12.5	5	NBR
KL11-075/1	75	90	11	5	NBR
KL11-075/2	75	85	11	5	NBR
KL11-075/3	75	90	11.5	5	NBR
KL11-075/4	75	90	12.8	5	NBR
KL11-075/5	75	95	14.5	5	NBR
KL11-075/6	75	88	12.5	5	NBR
KL11-075/7	75	90	8	5	NBR
KL11-080	80	90	12.5	5	NBR
KL11-080/1	80	100	12.5	5	NBR
KL11-080/2	80	100	14	5	NBR
KL11-080/3	80	95	12	5	NBR
KL11-080/4	80	93	14.5	5	NBR
KL11-080/5	80	96	10.5	5	NBR
KL11-080/6	80	100	12	5	NBR
KL11-080/7	80	100	14.5	5	NBR
KL11-080/8	80	95	10	5	NBR
KL11-085	85	100	12.5	5	NBR
KL11-085/1	85	95	8	5	NBR
KL11-085/2	85	100	12	5	NBR
KL11-085/3	85	105	14.5	5	NBR
KL11-088	88.9	114.3	19.7	5	NBR
KL11-090	90	105	12.5	5	NBR
KL11-090/1	90	110	12.5	5	NBR
KL11-090/2	90	105	9.5	5	NBR
KL11-090/4	90	106.2	11	5	NBR
KL11-095	95	105	11	5	NBR
KL11-095/1	95	112	12	5	NBR
KL11-095/2	95	115	14.5	5	NBR
KL11-095/3	95	110	12	5	NBR
KL11-095/4	95	115	12	5	NBR
KL11-095/5	95	107	12.5	5	NBR
KL11-100	100	115	12.5	7	NBR
KL11-100/1	100	120	14	7	NBR
KL11-100/2	100	125	20	7	NBR
KL11-100/3	100	120	24.5	7	NBR
KL11-100/4	100	115	11.5	7	NBR
KL11-100/5	100	120	12	7	NBR
KL11-100/6	100	120	14.5	7	NBR
KL11-100/7	100	113	13.5	7	NBR
KL11-105	105	115	11	7	NBR
KL11-105/1	105	125	12.5	7	NBR
KL11-110	110	130	12.5	7	NBR
KL11-110/1	110	125	12	7	NBR
KL11-110/2	110	135	15.5	7	NBR
KL11-115	115	135	16	7	NBR
KL11-120	120	130	10.5	7	NBR
KL11-120/1	120	132.7	10	7	NBR
KL11-120/2	120	135	12.5	7	NBR
KL11-120/3	120	140	12.5	7	NBR
KL11-120/4	120	145	18.8	7	NBR
KL11-125	125	150	14	7	NBR
KL11-125/1	125	150	14.5	7	NBR
KL11-130	130	145	13	7	NBR
KL11-130/1	130	145	15	7	NBR
KL11-130/2	130	150	16	7	NBR
KL11-135	135	150	14	7	NBR
KL11-135/1	135	160	14	7	NBR
KL11-140	140	160	12	7	NBR
KL11-140/1	140	155	13	7	NBR
KL11-140/2	140	160	14.5	7	NBR
KL11-140/3	140	160	12.5	7	NBR
KL11-140/4	140	170	22.8	7	NBR
KL11-145	145	157.7	10	7	NBR
KL11-150	150	170	14	7	NBR
KL11-150/1	150	170	14.5	7	NBR
KL11-160	160	175	16	7	NBR
KL11-160/1	160	180	14.5	7	NBR
KL11-175	175	200	23	7	NBR
KL11-180	180	200	14.5	7	NBR
KL11-180/1	180	210	20.5	7	NBR
KL11-190	190	210	14.5	7	NBR
KL11-198	198	208	12	7	NBR
KL11-200	200	220	14.5	10	NBR
KL11-210	210	240	22.5	10	NBR
KL11-220	220	250	20.5	10	NBR
KL11-230	230	260	20.5	10	NBR

KL11 Single Acting Rod Seals Hydraulic Cylinder Rod Seals Untuk Mesin Mobile

KL11 Segel batang berfungsi tunggal

Penutup Rod Single Acting Hydraulic

Segel batang silinder hidrolik

KL11 single acting hydraulic rod seal terdiri dari elastomer ring kain dan thermoplastic extrusion ring.
