Tempat asal:
Cina
Nama merek:
KELONG
Nomor model:
Karet V-seal VE Rotary Shaft Seal Ring
Contact Us

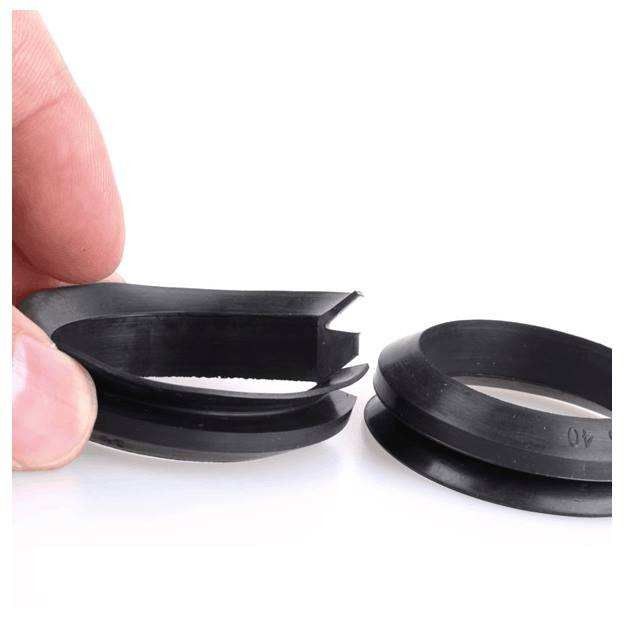

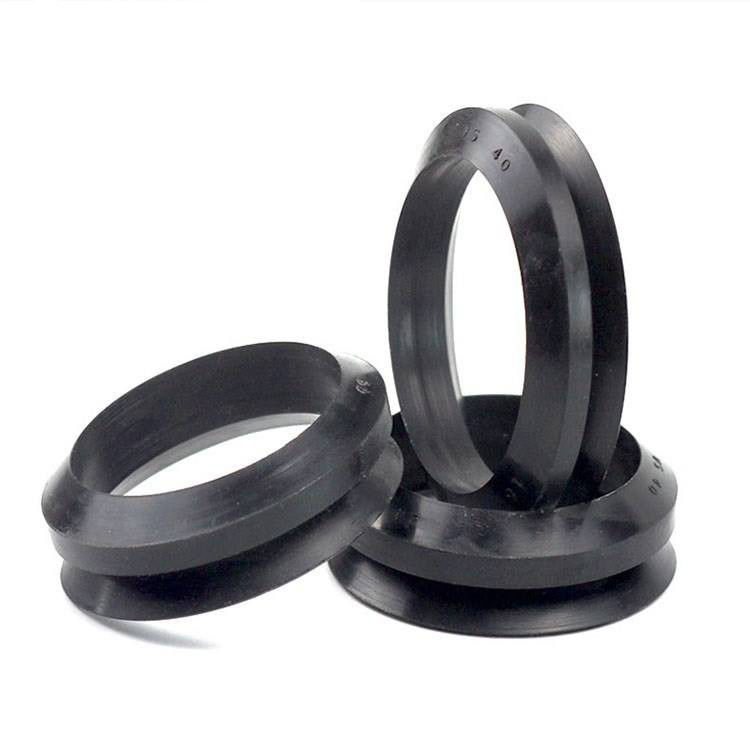

Type E-V-ring memiliki punggung lurus yang berfungsi sebagai segel batang aksial tanpa tekanan dengan panjang pemasangan yang sangat kecil dan diikat pada poros.Bibir fleksibel menyegel wajah berlawanan pada sudut lurus ke sumbu mencegah kotoranV-Ring V-E dirancang untuk penggunaan berat dan digunakan dalam situasi di mana toleransi aksial yang lebih besar diperlukan.Profil ini dikirimkan untuk poros dari Ø450 sampai Ø2010 mm.

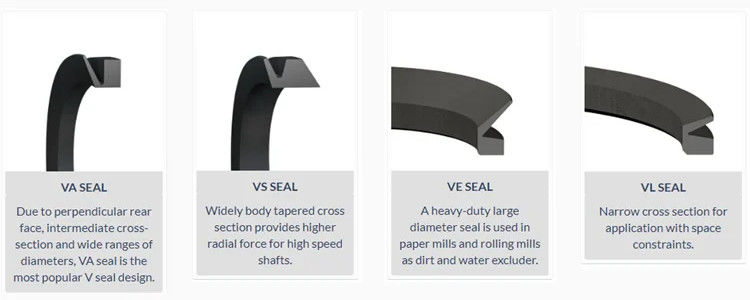

V-Ring V-E adalah segel V-ring berdiameter besar yang juga memungkinkan perpindahan aksial terbesar.Gaya V-Ring V-E dapat diperpanjang hingga 2 1/2 kali diameter aslinya juga.

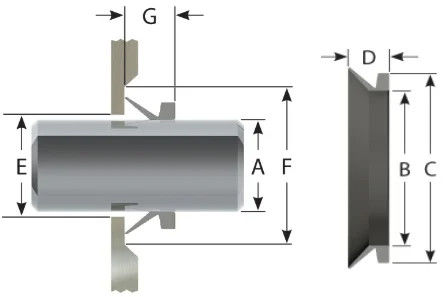

| A | B | A | B | A | B | |||||
| Nomor Bagian | Diameter poros | ID segel. | Nomor Bagian | Diameter poros | ID segel. | Nomor Bagian | Diameter poros | ID segel. | ||
| VE 450 | 450.00-455.00 | 439.00 | VE 670 | 670.00-680.00 | 650.00 | VE 1040 | 1025.00-1045.00 | 990.00 | ||
| VE 455 | 455.00- 460.00 | 444.00 | VE 680 | 680.00- 690.00 | 660.00 | VE 1060 | 1045.00- 1065.00 | 1008.00 | ||
| VE 460 | 460.00- 465.00 | 448.00 | VE 690 | 690.00- 700.00 | 670.00 | VE 1080 | 1065.00- 1085.00 | 1027.00 | ||
| VE 465 | 465.00- 470.00 | 453.00 | VE 700 | 700.00- 710.00 | 680.00 | VE 1100 | 1085.00-1105.00 | 1045.00 | ||
| VE 470 | 470.00-475.00 | 458.00 | VE 710 | 710.00-720.00 | 689.00 | VE 1120 | 1105.00-1125.00 | 1065.00 | ||
| VE 475 | 475.00-480.00 | 463.00 | VE 720 | 720.00-730.00 | 699.00 | VE 1140 | 1125.00-1145.00 | 1084.00 | ||
| VE 480 | 480.00- 485.00 | 468.00 | VE 730 | 730.00- 740.00 | 709.00 | VE 1160 | 1145.00- 1165.00 | 1103.00 | ||
| VE 485 | 485.00- 490.00 | 473.00 | VE 740 | 740.00- 750.00 | 718.00 | VE 1180 | 1165.00-1185.00 | 1121.00 | ||
| VE 490 | 490.00- 495.00 | 478.00 | VE 750 | 750.00-758.00 | 728.00 | VE 1200 | 1185.00- 1205.00 | 1139.00 | ||
| VE 495 | 495.00- 500.00 | 483.00 | VE 760 | 758.00-766.00 | 735.00 | VE 1220 | 1205.00-1225.00 | 1157.00 | ||
| VE 500 | 500.00- 505.00 | 488.00 | VE 770 | 766.00-774.00 | 743.00 | VE 1240 | 1225.00- 1245.00 | 1176.00 | ||
| VE 505 | 505.00- 510.00 | 493.00 | VE 780 | 774.00- 783.00 | 751.00 | VE 1260 | 1245.00- 1270.00 | 1195.00 | ||
| VE 510 | 510.00- 515.00 | 497.00 | VE 790 | 783.00- 792.00 | 759.00 | VE 1280 | 1270.00-1295.00 | 1218.00 | ||
| VE 515 | 515.00- 520.00 | 502.00 | VE 800 | 792.00- 801.00 | 768.00 | VE 1300 | 1296.00- 1315.00 | 1240.00 | ||
| VE 520 | 520.00- 525.00 | 507.00 | VE 810 | 801.00-810.00 | 777.00 | VE 1325 | 1315.00-1340.00 | 1259.00 | ||
| VE 525 | 525.00- 530.00 | 512.00 | VE 820 | 810.00-821.00 | 786.00 | VE 1350 | 1340.00- 1365.00 | 1281.00 | ||
| VE 530 | 530.00- 535.00 | 517.00 | VE 830 | 821.00- 831.00 | 796.00 | VE 1375 | 1365.00- 1390.00 | 1305.00 | ||
| VE 535 | 535.00- 540.00 | 521.00 | VE 840 | 831.00- 841.00 | 805.00 | VE 1400 | 1390.00- 1415.00 | 1328.00 | ||
| VE 540 | 540.00- 545.00 | 526.00 | VE 850 | 841.00-851.00 | 814.00 | VE 1425 | 1415.00-1440.00 | 1350.00 | ||
| VE 545 | 545.00- 550.00 | 531.00 | VE 860 | 851.00-861.00 | 824.00 | VE 1450 | 1440.00-1465.00 | 1374.00 | ||
| VE 550 | 550.00- 555.00 | 536.00 | VE 870 | 861.00-871.00 | 833.00 | VE 1475 | 1465.00-1490.00 | 1397.00 | ||
| VE 555 | 555.00- 560.00 | 541.00 | VE 880 | 871.00- 882.00 | 843.00 | VE 1500 | 1490.00- 1515.00 | 1419.00 | ||
| VE 560 | 560.00- 565.00 | 546.00 | VE 890 | 882.00- 892.00 | 853.00 | VE 1525 | 1515.00- 1540.00 | 1443.00 | ||
| VE 565 | 565.00- 570.00 | 550.00 | VE 900 | 892.00-912.00 | 871.00 | VE 1550 | 1540.00-1570.00 | 1467.00 | ||
| VE 570 | 570.00-575.00 | 555.00 | VE 920 | 912.00-922.00 | 880.00 | VE 1575 | 1570.00-1600.00 | 1495.00 | ||
| VE 575 | 575.00- 580.00 | 560.00 | VE 930 | 922.00- 933.00 | 890.00 | VE 1600 | 1600.00-1640.00 | 1524.00 | ||
| VE 580 | 580.00- 585.00 | 565.00 | VE 940 | 933.00- 944.00 | 900.00 | VE 1650 | 1640.00- 1680.00 | 1559.00 | ||
| VE 585 | 585.00- 590.00 | 570.00 | VE 950 | 944.00- 955.00 | 911.00 | VE 1700 | 1680.00-1720.00 | 1596.00 | ||
| VE 590 | 590.00-600.00 | 575.00 | VE 960 | 955.00-966.00 | 921.00 | VE 1750 | 1720.00-1765.00 | 1632.00 | ||
| VE 600 | 600.00-610.00 | 582.00 | VE 970 | 966.00- 977.00 | 932.00 | VE 1800 | 1765.00-1810.00 | 1671.00 | ||
| VE 610 | 610.00-620.00 | 592.00 | VE 980 | 977.00- 988.00 | 942.00 | VE 1850 | 1810.00-1855.00 | 1714.00 | ||
| VE 620 | 620.00-630.00 | 602.00 | VE 990 | 988.00- 999.00 | 953.00 | VE 1900 | 1855.00- 1905.00 | 1753.00 | ||
| VE 630 | 630.00-640.00 | 612.00 | VE 1000 | 999.00- 1010.00 | 963.00 | VE 1950 | 1905.00- 1955.00 | 1794.00 | ||
| VE 640 | 640.00-650.00 | 621.00 | VE 1020 | 1010.00- 1025.00 | 973.00 | VE 2000 | 1955.00- 2010.00 | 1844.00 | ||
| VE 650 | 650.00-660.00 | 631.00 | ||||||||
