Tempat asal:
Cina
Nama merek:
KELONG
Nomor model:
Cincin Segel Poros Putar V-seal Karet
Contact Us
HBY HRX Standard Buffer Rod Seal Buffer Ring Excavator Rotary Oil Seal Hydra Cylinder Seal

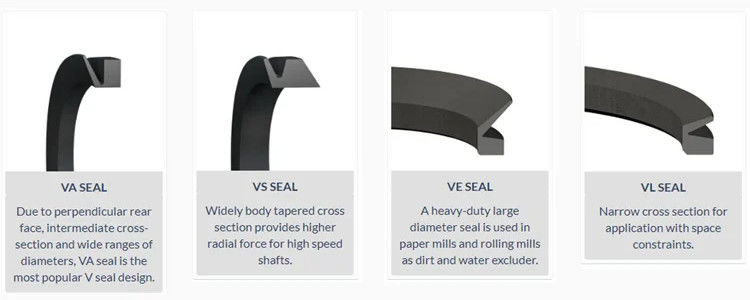

Type L-V-ring dengan punggung lurus berfungsi sebagai segel batang aksial tanpa tekanan dengan panjang pemasangan yang sangat kecil, yang dikencangkan pada poros.Lip penyegelan fleksibel menyegel counterface pada sudut lurus ke poros mencegah kotoran, debu dan percikan untuk memasuki konstruksi.

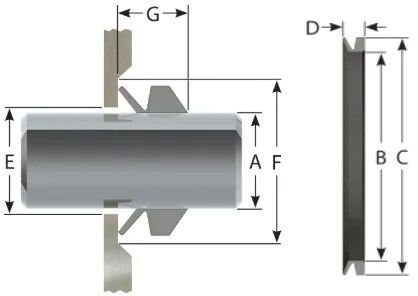

| Ukuran Segel | Dimensi Perumahan | ||||||
| A | B | C | D | E | F | G | |
| Nomor Bagian | Diameter poros | KTP. | OD | Ketinggian | KTP. | OD | Lebar |
| VL 130 | 125.00-135.00 | 117.00 | 130.21 | 10.41 | A+5.08 | A + 20.07 | 7.87±1.52 |
| VL140 | 135.00-145.00 | 126.00 | 139.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 150 | 145.00-155.00 | 135.00 | 148.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 160 | 155.00-165.00 | 144.00 | 157.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL170 | 165.00-175.00 | 153.00 | 166.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 180 | 175.00-185.00 | 162.00 | 175.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87 ± 1.52 |
| VL 190 | 185.00-195.00 | 171.00 | 184.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 200 | 195.00-210.00 | 182.00 | 195.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 220 | 210.00-233.00 | 198.00 | 211.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 250 | 233.00-260.00 | 225.00 | 238.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87 ± 1.52 |
| VL 275 | 260.00-285.00 | 247.00 | 260.21 | 10.41 | A+5.08 | A + 20.07 | 7.87±1.52 |
| VL 300 | 285.00-310.00 | 270.00 | 283.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 320 | 310.00-335.00 | 292.00 | 305.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 350 | 335.00-365.00 | 315.00 | 328.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87 ± 1.52 |
| VL375 | 365.00-385.00 | 337.00 | 350.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 400 | 385.00-410.00 | 360.00 | 373.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL425 | 410.00-440.00 | 382.00 | 395.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 450 | 440.00-475.00 | 405.00 | 418.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 500 | 475.00-510.00 | 450.00 | 463.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL 550 | 540.00-575.00 | 495.00 | 508.21 | 10.41 | A + 5.08 | A + 20.07 | 7.87±1.52 |
| VL600 | 575.00-625.00 | 540.00 | 553.21 | 10.41 | A+5.08 | A + 20.07 | 7.87±1.52 |
