Tempat asal:
Cina
Nama merek:
Kelong
Sertifikasi:
ISO9001 / IRIS
Nomor model:
KS1705
Contact Us

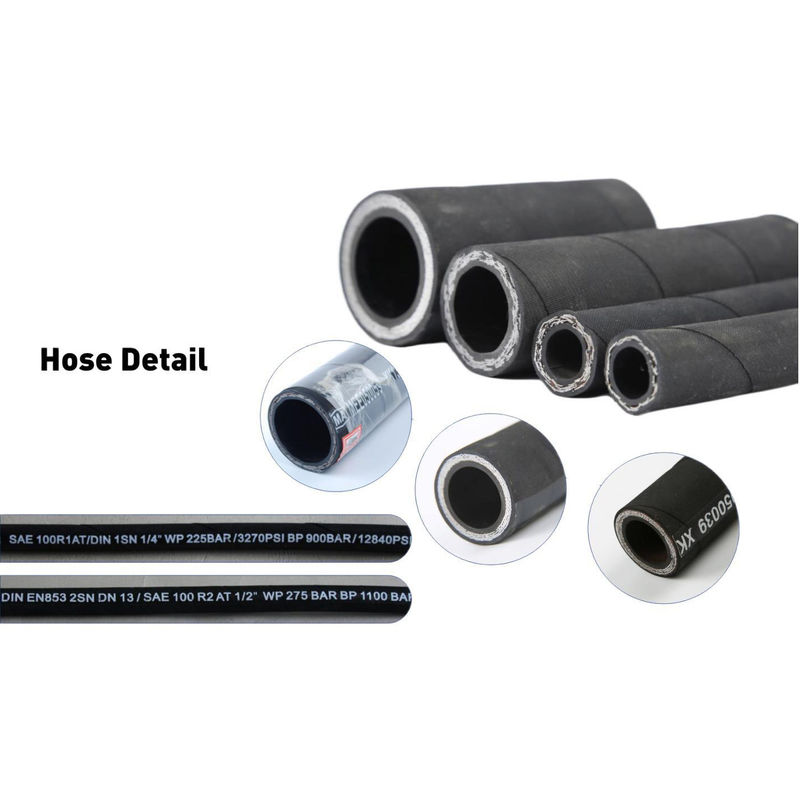

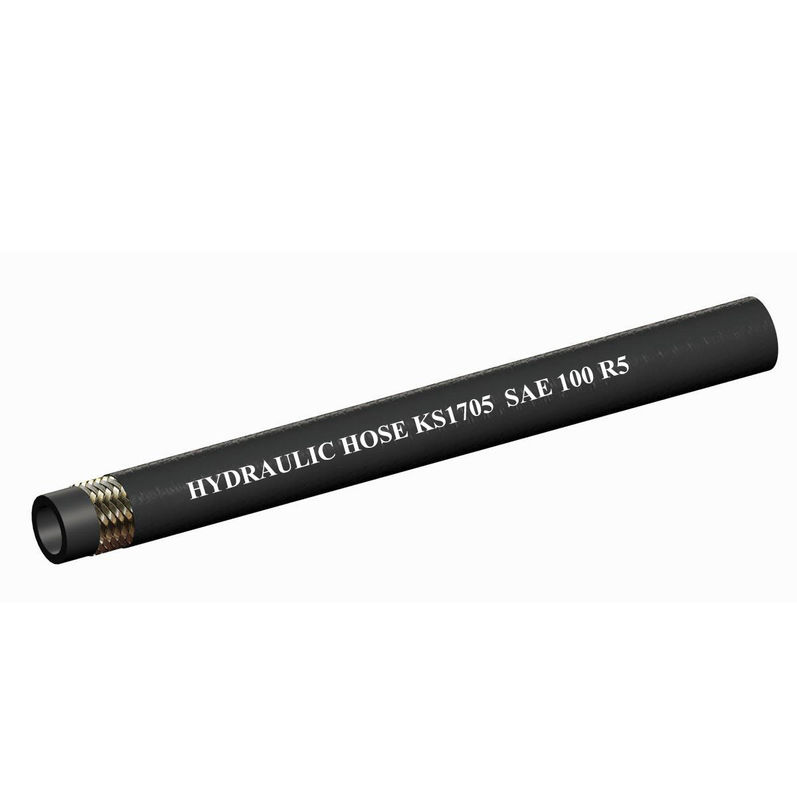

SAE 100R5 Hidraulik Hose Wire Braid Cover Tekstil
TUBE:
Lapisan dalam karet sintetis tahan minyak + benang kawat + Tutup Tekstil
Penguatan:
Satu perban kawat baja tahan tarik tinggi di atas satu perban poliester. lapisan gesekan di bawah dan di atas perban kawat untuk meningkatkan tabung dan tutup adhesi.
Tutup:Karet sintetis tahan abrasi dan ozon
Catatan:Berbagai penutup tersedia
Rentang suhu:-40°C sampai 100°C / -40°F sampai +212°F (maksimal 120°C / 248°F intermiten)

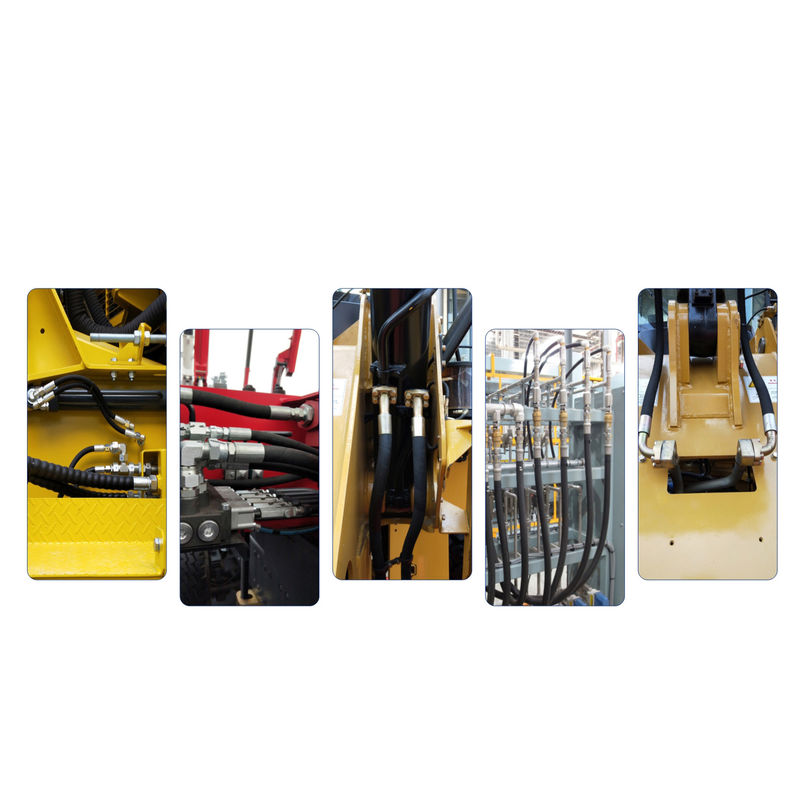

Aplikasi:Cocok untuk minyak hidrolik berbasis minyak bumi.
|
TYPE |
Ukuran dash |
KTP |
OD |
Tekanan kerja |
Tekanan bukti |
Min Tekanan ledakan |
Radius Bend Min |
W.T |
||||||||
|
W.P. |
P. P. |
Tekanan darah |
Min B.R. |
|||||||||||||
|
mm |
Kekuasaan, 1/16 |
Inci |
Min |
Maksimal |
Min |
Maksimal |
MPa |
Psi |
MPa |
Psi |
MPa |
Psi |
Inci |
mm |
Kg/m |
|
|
KS1705-03 |
5 |
-3 |
3/16 |
4.8 |
5.5 |
12.7 |
13.7 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
2.95 |
75 |
0.24 |
|
KS1705-04 |
6.3 |
- 4 |
1/4 |
6.4 |
7.2 |
14.3 |
15.3 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
3.35 |
85 |
0.28 |
|
KS1705-05 |
8 |
- 5 |
5/16 |
7.9 |
8.7 |
16.7 |
17.6 |
15.7 |
2270 |
31.5 |
4570 |
63 |
9135 |
3.94 |
100 |
0.35 |
|
KS1705-06 |
11 |
- 6 |
13/32 |
10.3 |
11.1 |
18.9 |
20.0 |
14 |
2030 |
28 |
4060 |
56 |
8120 |
4.53 |
115 |
0.38 |
|
KS1705-08 |
12.5 |
-8 |
1/2 |
12.7 |
13.7 |
22.8 |
24.0 |
12.2 |
1770 |
24.5 |
3550 |
49 |
7105 |
5.51 |
140 |
0.51 |
|
KS1705-10 |
16 |
- 10 |
5/8 |
15.9 |
17.0 |
26.8 |
28.0 |
10.5 |
1520 |
21 |
3045 |
42 |
6090 |
6.50 |
165 |
0.68 |
|
KS1705-16 |
22 |
- 16 tahun. |
7/8 |
22.2 |
23.3 |
30.6 |
32.2 |
5.6 |
810 |
11.2 |
1620 |
22.4 |
3250 |
7.28 |
185 |
0.70 |
|
KS1705-20 |
29 |
- 20 |
1-3/8 |
28.6 |
29.8 |
37.3 |
38.9 |
4.3 |
620 |
8.7 |
1260 |
17.5 |
2540 |
9.06 |
230 |
0.80 |
|
KS1705-24 |
35 |
- 24 |
1-1/4 |
34.9 |
36.1 |
43.7 |
45.2 |
3.5 |
510 |
7 |
1015 |
14 |
2030 |
10.43 |
265 |
0.93 |
|
KS1705-32 |
46 |
- 32 |
1-13/16 |
46.0 |
47.2 |
55.2 |
57.6 |
2.4 |
350 |
4.9 |
700 |
9.8 |
1420 |
13.19 |
335 |
1.32 |
|
KS1705-40 |
60 |
- 40 |
2-3/8 |
603.0 |
61.9 |
71.8 |
74.2 |
2.4 |
350 |
4.9 |
700 |
9.8 |
1420 |
24.02 |
610 |
2.96 |
|
KS1705-48 |
76 |
- 48 |
3 |
76.2 |
77.8 |
89.3 |
91.7 |
1.4 |
200 |
2.8 |
410 |
5.6 |
810 |
33.07 |
840 |
4.10 |
